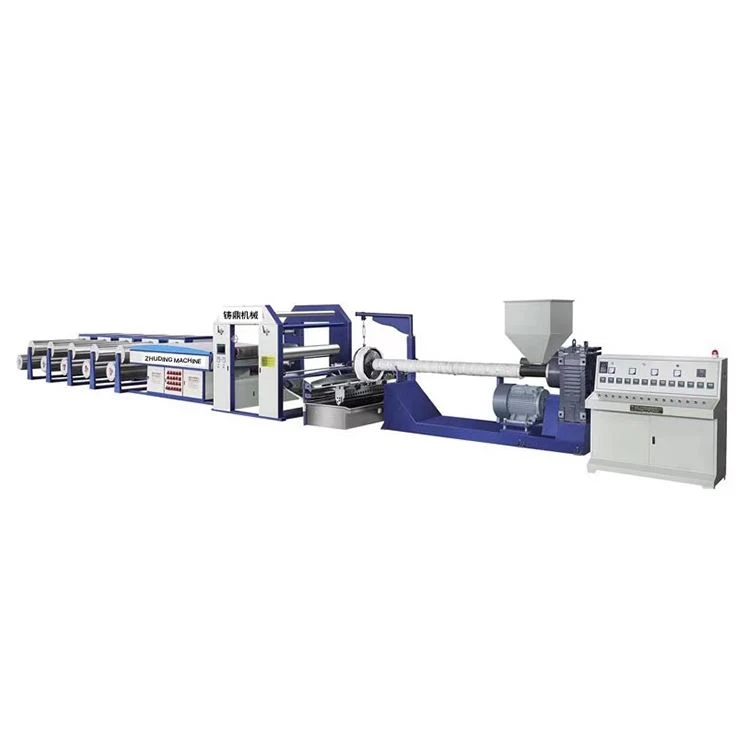

Zd-spl series plastic flat film wire drawing unit is newly developed by our factory on the basis of introducing, digesting and absorbing advanced technologies at home and abroad. It adopts internationally advanced electrical simulation control technologies such as microcomputer control, frequency conversion speed regulation and thyristor DC speed regulation, so that the main indicators of the unit reach the international advanced level, with high production efficiency and good wire barrel forming quality. At the same time, advanced belt screen changing structure can be added according to the needs of users, as well as fiber mechanism (for flexible packaging or production of fiber sewing and wrapping thread)
Qunli series plastic flat film drawing machine has two kinds of blank wire heating structures: hot air stretching bellows or electric heating drying plate, which can be used and selected
This series flat yarn extrusion line is designed and developed on the base of introducing and assimilating the up-to-date technologies at home and abroad.
It adopts the international electric digital-simulation control technology such as computer-controlled frequency conversion speed regulation so as to make the main target reach the international advanced level.
Meanwhile, with high production efficiency and high quality of tape tube forming.



Type | Max extrusion volume | Driving power of extruder | Screw diameter | Ratio of L/D | Revolution of screw | Die lip width | Max productiona speed |
ZD-SPL-70/33/850 | 180kg/h | 45kw | 70mm | 33:1 | 20-120r/min | 850m/min | 280m/min |
ZD-SPL-90/33/1000 | 280kg/h | 90kw | 90mm | 33:1 | 20-120r/min | 100m/min | 280m/min |
ZD-SPL-100/33/1100 | 350kg/h | 90kw | 100mm | 30:1 | 20-120r/min | 1100m/min | 280m/min |
ZD-SPL-120/33/1500 | 490kg/h | 160kw | 120mm | 30:1 | 20-120r/min | 1500m/min | 280m/min |
Type | Flat thread fibre scope | Drawing ratio | Number of winder | System installed capacity | Syetem normal operational capaciy | Overall dimensions(L*W*H) | Weight(kg) |
Spindles | |||||||
ZD-SPL-70/33/850 | 60-200tex | 4-10 | 144 | 240kw | 128kw | 2700*3700*2800 | 21000 |
ZD-SPL-90/33/1000 | 60-200tex | 4-10 | 176 | 300kw | 160kw | 3500*3700*3000 | 28000 |
ZD-SPL-100/33/1100 | 60-200tex | 4-10 | 192 | 320kw | 170kw | 3400*3700*3000 | 30000 |
ZD-SPL-120/33/1500 | 60-200tex | 4-10 | 256 | 400kw | 210kw | 3700*3900*2600 | 32000 |
FAQ:
1.Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
2.Q:How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
